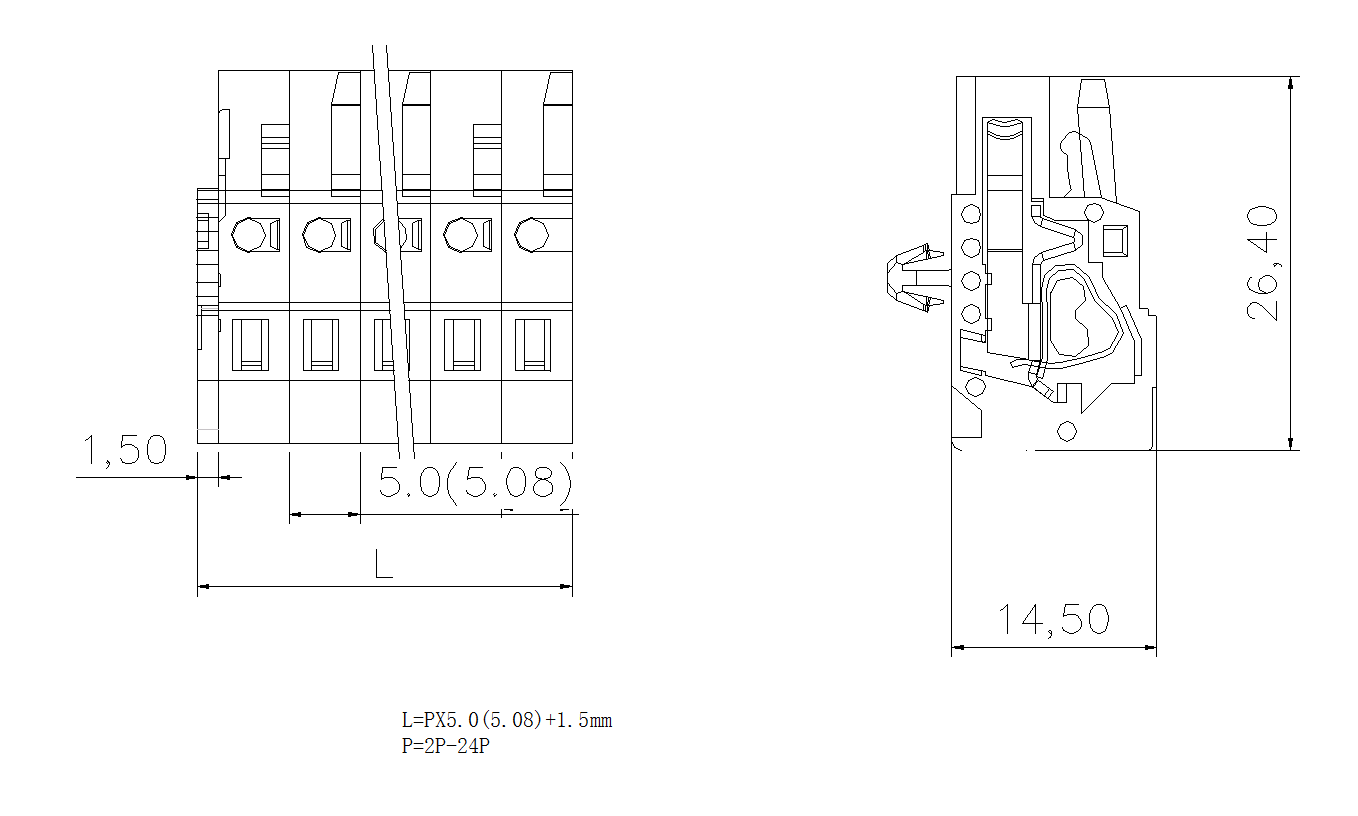

TCK5.0G/5.08 series female connector with pin
model | TCK5.0G/003-XXP; TCK5.08/003-XXP | ||
bit spacing | 5.0mm/5.08mm | ||
number of digits | 2-24P | ||
Wiring range | AWG/mm 2 | 24-14/0.2-2.5 | |
Technical data | IEC | UL | |
Rated voltage | V | 250 | 300 |
Rated current | A | 16 | 15 |
Rated impulse voltage | KV | 4 | |
pollution level | 3 | ||
Insulation Materials | PA66 | ||
Flammability rating | V0 | ||
Applicable ambient temperature | – 40℃~+105℃ | ||
can choose colour | 5.0 pitch (grey); 5.08 pitch (orange) | ||
Contact material | Phosphor bronze tinned | ||
Shrapnel material | Stainless steel | ||
Wiring | spring clip | ||
Applicable lead | 0.2-2.5 mm 2 types of conductors | ||
Stripping length | 8-9mm/ 0.33in | ||
TC01(5.0): Crimping tool, made of insulating material, 1 pin, off-white
TC02(5.0): Crimping tool, made of insulating material, 1 pin, off-white
TC03(5.0): Jumper bridge, made of metal parts of insulating material, 2 pins, grey
TC04: Made of insulating material, suitable for male and female connectors with retaining pins, grey, for mounting on 35 rails
